Drain Field Products for Sale in Yulee Near Jacksonville, Florida




  • ARC 24™ INFILTRATOR LEACHFIELD CHAMBERS

  • SEPTIC STACK™ PIPE SYSTEMS

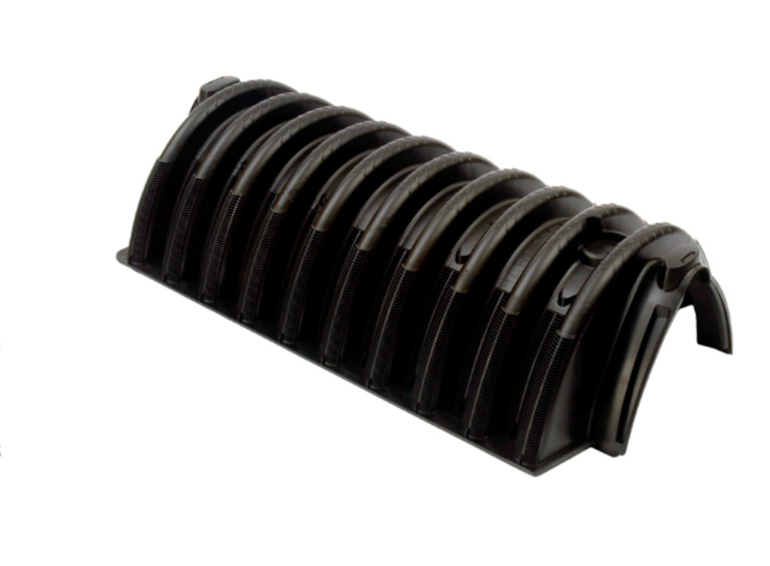

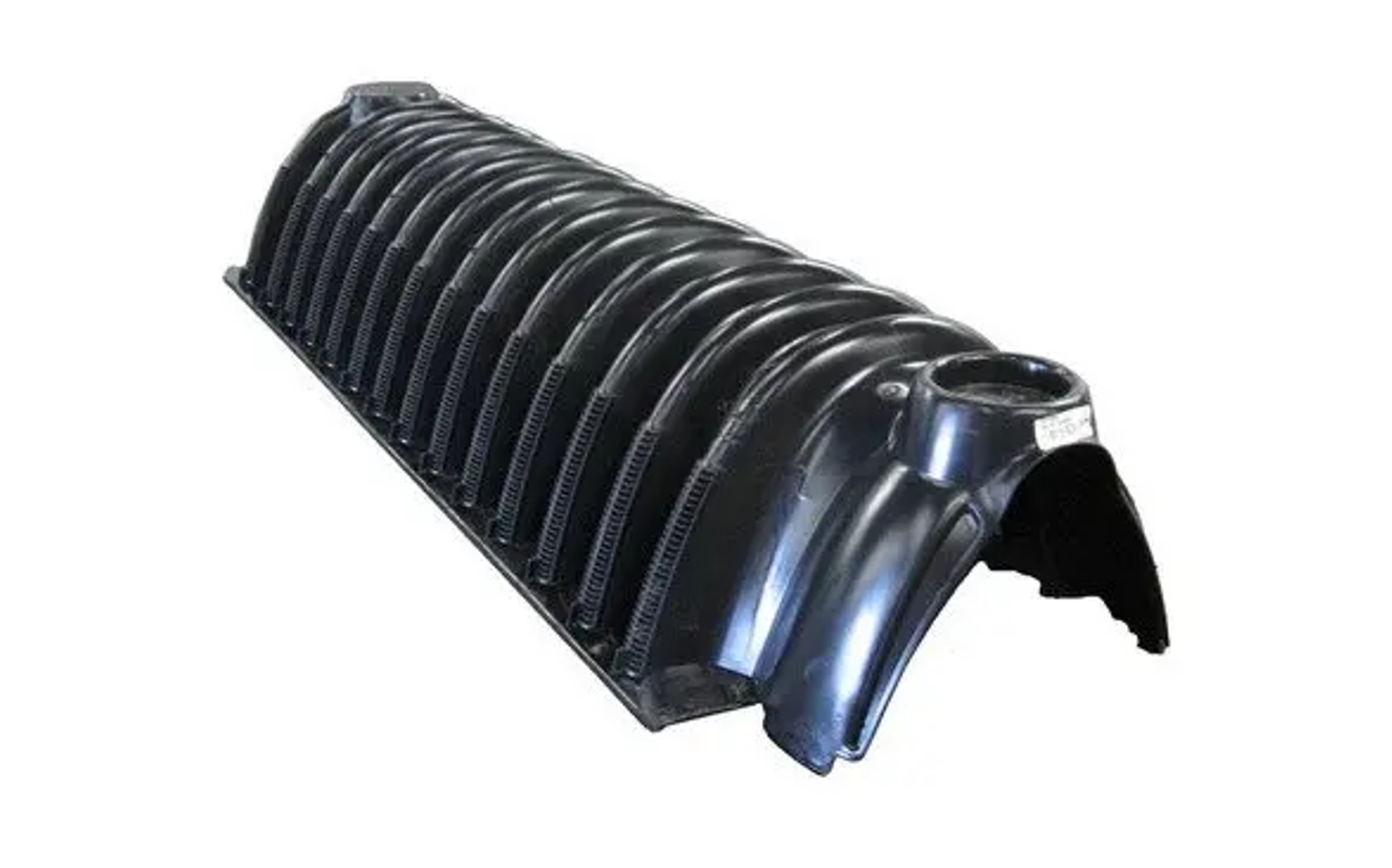

  • The unique structural design of ARC Chambers makes it able to handle any conventional leachfield system challenge without sacrificing performance. The septic leaching chamber is a sturdy, lightweight polyethylene plastic unit that combines maximized infiltrative surface area and storage capacity. This combination allows for increased effluent dispersal performance and improved structural integrity.


    Overview


    Leachfield chambers are the product of choice for leachfield applications over conventional pipe and gravel systems. Their lightweight construction lowers installed costs and less intrusive installations.

    The Arc 24 septic leaching chamber is a sturdy, lightweight plastic unit the maximizes infiltrative surface area and storage capacity with an improved structural design. This allows for increased effluent dispersal and structural integrity as well as ease of installation and contouring abilities.

    Features and Benefits

    • Injection molding for HDPE lightweight and sturdy drain field dome design
    • 20 degree integral articulating joint for straight or contoured leachfields
    • Corrugated design eliminates flat surfaces and provides increased load-bearing capacity
    • Accommodates gravity fed and pressure-dosed systems
    • Lock and drop joint provides positive connection during installation and backfill and universal inlet/outlet cap
    • 5’ lengths that are easy to handle, quickly installed by 1 person in a wide trench or bed
    • Biochamber
    • Waste Water Drain
    • French Drain
    • Increased plumbing option with Side Port Coupler component
    • Side entry to any joint, diamond plate texture increases slip resistance and inspection vent ports with easy-to-remove knockouts for job flexibility

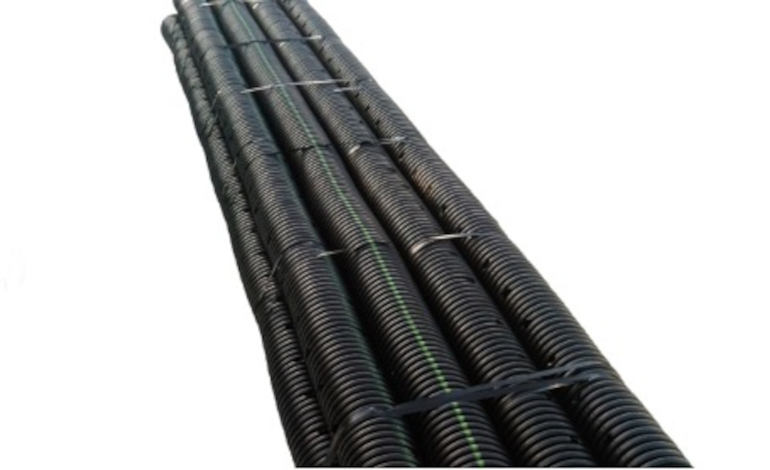

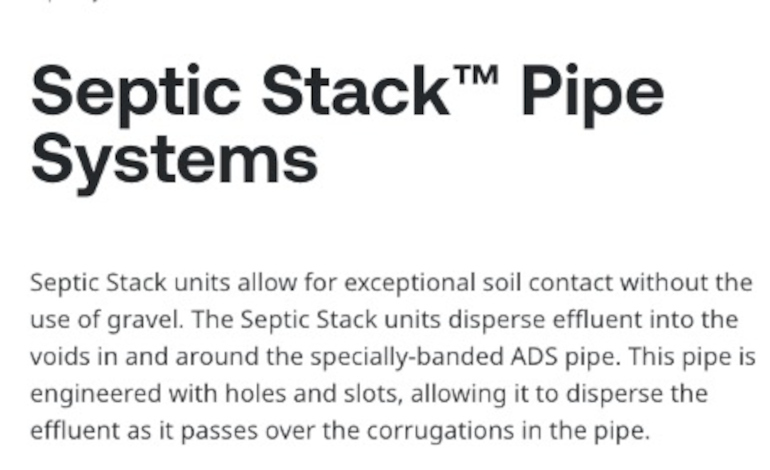

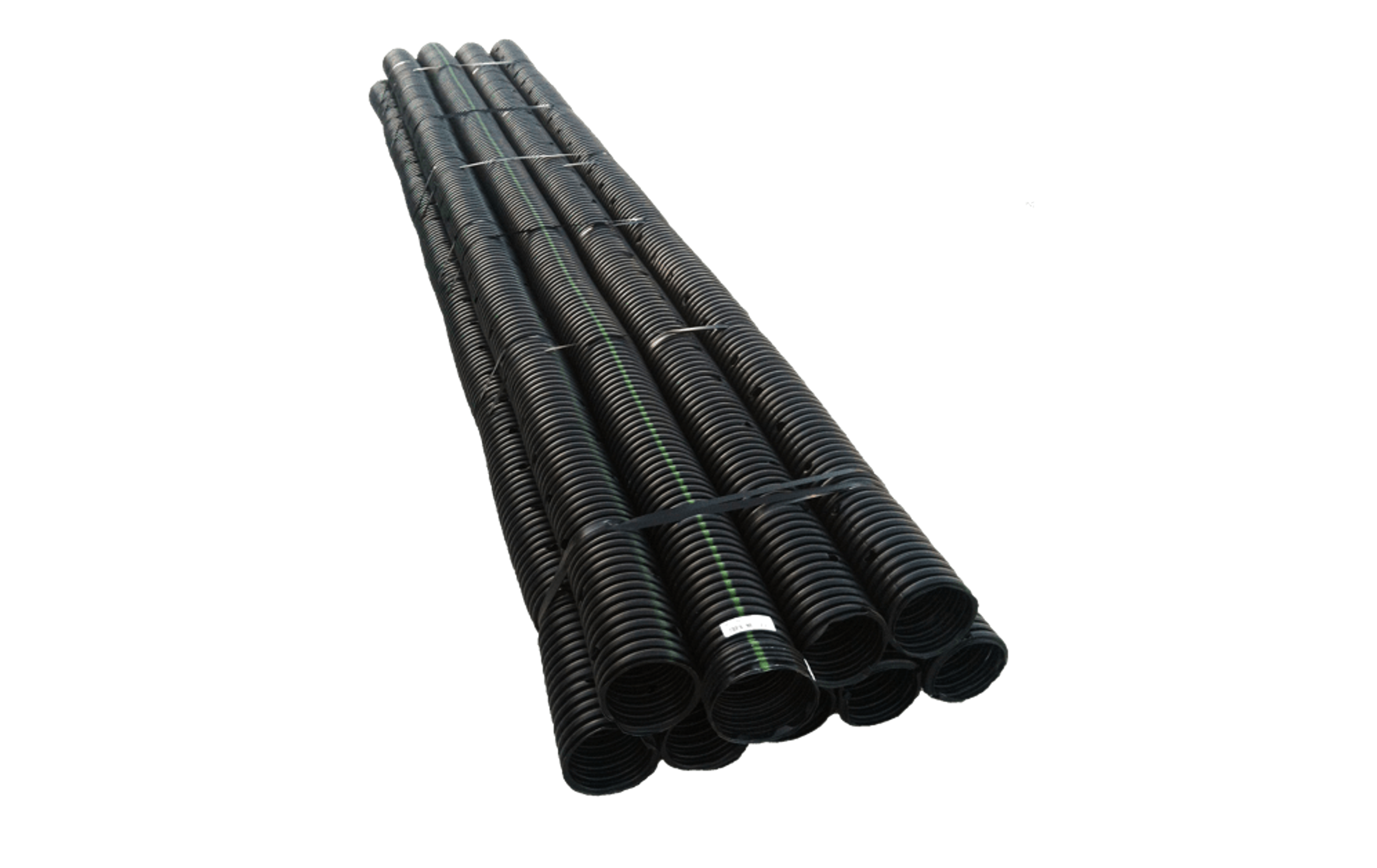

  • Septic Stack units allow for exceptional soil contact without the use of gravel. The Septic Stack units disperse effluent into the voids in and around the specially-banded ADS pipe. This PTI pipe is engineered with holes and slots, allowing it to disperse the effluent as it passes over the corrugations in the 9 pack pipe in a multi pipe drainfield.


    Overview

    Our Septic Stack units function as a trickle filter, dispersing effluent into the voids in and around the specially-banded ADS pipe. This Leachfield pipe is engineered with holes and slots, allowing it to collect and disperse the effluent as it passes over the corrugations in the pipe. Our Septic Stack Pipe Systems are available in a multiple of different sizes for use in both residential and commercial applications. Contact your local Health Department or County Sanitarian for information on which sizes meet your state and local requirements.

    Features and Benefits

    • Using 4" HDPE pipe provides excellent abrasion and corrosion resistance
    • Light weight
    • 10' lengths create fast installation times and allow tremendous design flexibility
    • Structural strength that will support H-10 load rating with 12" settled cover
    • 8.6" height provides low profile
    • High storage volume
    • Waste Water Drain
    • French Drain
    • Effluent Drain Pipe
    • Distribution Drainfield Pipe runs the entire length of system
    • Corrugated Drainfield pipe

  •
